| Category | Specification |
|---|---|
| Product | HPE / HP OfficeConnect 1410-24-R Switch |
| Part number | JD986B |
| Type | Unmanaged rackmount Fast Ethernet switch |
| Ports | 24 × RJ-45 autosensing 10/100Base-TX ports |
| Switching capacity | 4.8 Gb/s |
| 100 Mb latency | < 11 μs, LIFO 64-byte packets |
| MAC address table | 8,192 entries |
| Packet buffer | 2 MB |
| Dimensions | 44 × 440 × 173 mm / 1.73 × 17.32 × 6.81 in |
| Weight | Official guide: ≤ 2.5 kg; your pasted spec: 2.0 kg |
| Mounting | 19-inch rack or desktop |
| Input voltage | 100–240 VAC, 50/60 Hz |
| Power consumption | Official guide: < 6 W; your pasted spec: 3.6 W max |
| Cooling / acoustic | Fanless, 0 dB |
| Operating temperature | 0°C to 40°C / 32°F to 104°F |
| Operating humidity | 5–95% or 15–95%, noncondensing, depending on source |
| Storage temperature | -40°C to 70°C / -40°F to 158°F |
| Safety | UL 60950-1, CSA 22.2 60950-1, IEC 60950-1, EN 60950-1 |
| Emissions | FCC Part 15 Subpart B Class A |
Aruba HP JD986B 1410-24-R 24-Port Fanless Switch Sourcing

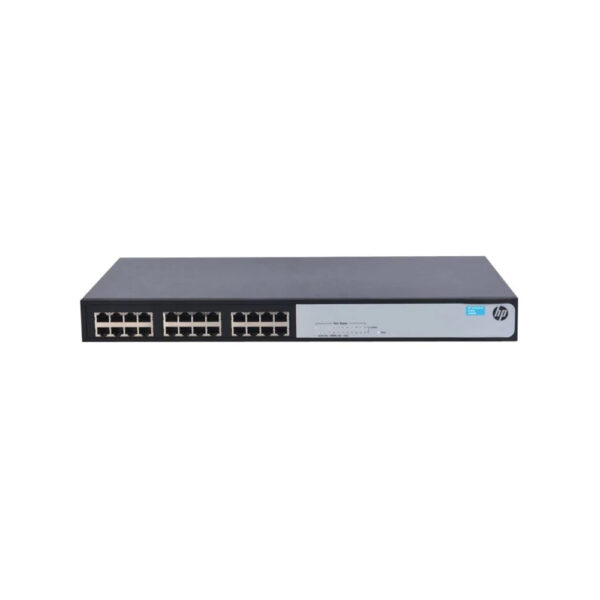

The Aruba HP JD986B 1410-24-R Switch is an unmanaged, fanless OfficeConnect switch for SMB access networking. It provides 24 RJ-45 autosensing ports, plug-and-play deployment, 4.8 Gb/s switching capacity, rack or desktop mounting, and quiet, low-power operation for reliable office connectivity.
