| Attribute | Specification | Attribute | Specification |
|---|---|---|---|
| Model | 12000/10-DC-TRUGH | Brand | Cisco |
| Compatible Chassis | Cisco XR 12410 Router | Input Voltage (Nominal) | -48 VDC (North America), -60 VDC (European Community) |
| Input Voltage Range | -40.5 V to -72 VDC (transient to -75 VDC for 5 ms) | Maximum Input Current | 40 A per power entry module (dual modules required) |
| Total Power Output | 2800 W per DC power entry module | Redundancy | 2N redundancy supported (requires two modules) |
| Installation | Hot-swappable modules | Chassis Power Capacity | Fully configured system with DC power |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | Non-Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
| Operating Humidity | 10% to 85% non-condensing | Non-Operating Humidity | 5% to 95% non-condensing |
| Operating Altitude | 0 to 3000 m (0 to 10,000 ft) | Non-Operating Altitude | 0 to 4570 m (0 to 15,000 ft) |
| Heat Dissipation | 9554 BTU/hour (maximum) | Acoustic Noise | ≤ 80 dBA |
| Operating Shock | 21 in/sec (0.53 m/sec) | Non-Operating Shock | 20G (trapezoidal pulse) |
| Vibration (Operating) | 0.35 Grms | Vibration (Non-Operating) | 1.0 Grms |
| Weight | 8.8 kg |

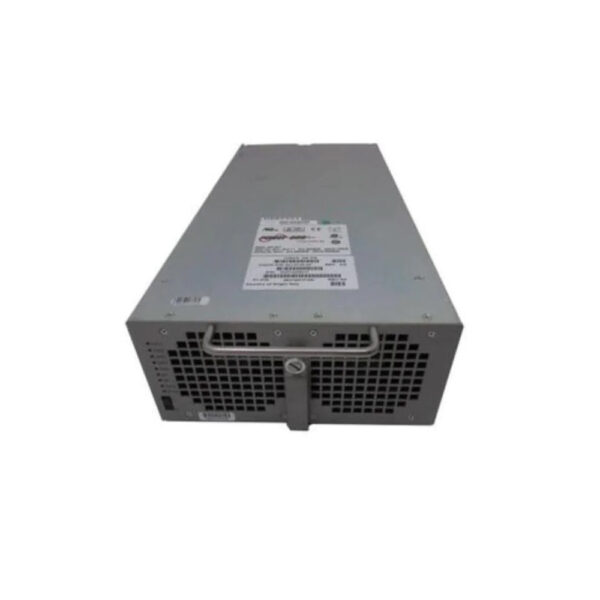

Cisco 12000 10-Slot Enhanced DC Trough Wholesale Option
The Cisco 12000/10-DC-TRUGH is an enhanced DC trough option for Cisco 12000 10-slot routers, supporting stable DC power integration for carrier and enterprise backbone networks. It is ideal for maintenance, upgrades, and replacement sourcing in professional B2B telecom environments and data centers.
