| Attribute | Specification | Attribute | Specification |
|---|---|---|---|
| Model | CR2M04BASD01 | Brand | Huawei |
| Switching Capacity | 480 Gbit/s | Forwarding Performance | 180Mpps |
| Fixed Ports | — | Number of Slots | 2 MPUs 1 NSP 4 PICs |
| Dimensions (H x W x D) | 5.1in. x 17.4in. x 8.6in. DC = 3U (132mm x 442mm x 220mm DC = 3U) | Power consumption (in full configuration) | 398W (DC) |
| Interface Types | 40 GE 10 GE GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS E1/CE1 | Clock Synchronization | Synchronous Ethernet and IEEE 1588v2 |
| Layer 2 Features | IEEE 802.1q IEEE 802.1p IEEE 802.3ad IEEE 802.1ab STP/RSTP/MSTP | IPv4/IPv6 Routing Protocols | IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP IPv4/IPv6 dual stack IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing |
| L2/L3 VPN | LDP over TE, VPLS, H-VPLS, and VPN policy-based routing Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN | Multicast | IGMPv1/v2/v3 IGMP snooping IPv6 multicast Static multicast routing PIM-SM PIM-SSM MBGP NG MVPN |
| QoS | WRED Five-level HQoS VLL/PWE3 QoS | Reliability | NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6 Fast convergence of BGP/IGP/multicast routes IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR Ethernet OAM, Y.1731, and PWE3 E2E protection ISSU and in-service patching for smooth software upgrades |
| Security | ACL-based packet filtering AAA SNMPv3 encryption and authentication URPF, GTSM, DHCP snooping ARP attack defense SSHv2 | Value-added Services | NAT, IPSec, GRE, and NetStream |
| OAM | Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah | Operating Temperature | -40°F to 149°F (-40°C to 65°C) |
| Operating Relative Humidity | 5% to 85%, non-condensing | Operating Altitude | ≤ 9,842.5 ft. (3,000m) |
| Weight | 25 kg |

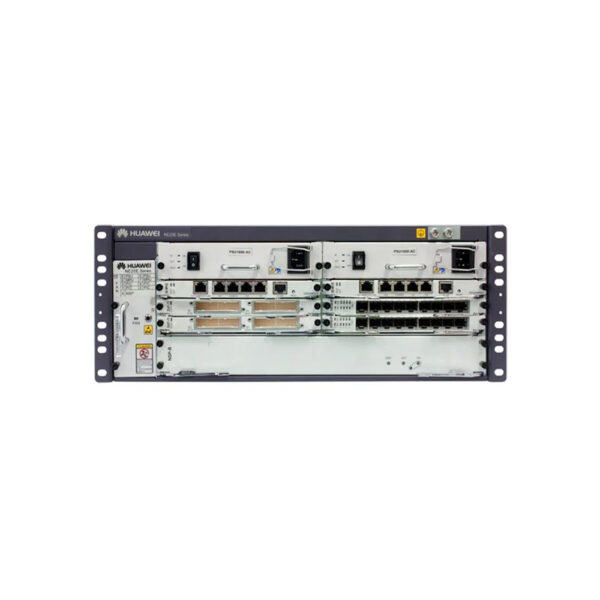

CR2M04BASD01 Huawei NE20E-S4 4-Slot DC Router B2B Solution
CR2M04BASD01 is a Huawei NE20E-S4 DC basic router configuration built for enterprise and carrier access or aggregation networks. It includes a 4-slot chassis, two DC power supplies and one MPUE, offering modular expansion, reliable routing performance and flexible interface options for B2B networks.
