| Attribute | Specification |
|---|---|
| Huawei AR6140-9G-2AC Specification | AR6140-9G-2AC Specification |
| Processor | 4-Core |
| Forwarding Performance (LAN – > WAN + WAN – > LAN,NAT + ACL + QoS,IMIX) | 2 Gbps |
| IPsec performance (IMIX) | 2 Gbps |
| Fixed WAN ports | 2 x GE RJ45 + 2 x GE SFP |
| Fixed LAN ports | 2 x GE SFP + 3 x GE RJ45 (can be configured as WAN) |
| SIC slots | 4 |
| WSIC slots | 0 (default)/2 (maximum) |
| XSIC slots | \ |
| USB port | 1 x USB3.0 (compatible with USB 2.0) |
| Auxiliary or console port | 1 x RJ45 console port |
| Memory | 2 GB |
| Flash memory | 1 GB |
| Hot swapping | Supported |
| Router dimensions,With no mounting bracket installed (H x W x D) | 44.5 mm x 442 mm x 420 mm |
| Router dimensions,With mounting bracket installed (H x W x D) | 44.5 mm x 482.6 mm x 572.5 mm |
| Packaging dimensions (H x W x D) | 175 mm x 550 mm x 710 mm |
| Rack | IEC |
| Occupied rack space | 1U |
| Rated input voltage range (AC) | 100 V to 240 V |
| Rated input frequency (AC) | 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V |
| Maximum input current (AC) | 3 A |
| Maximum output power (AC) | 150W |
| Power supply redundancy | Support |
| Typical power consumption | 18W |
| Maximum power consumption | 32W |
| Fan module | Built-in unpluggable fan modules |
| Airflow | Left to right |
| Noise level | 54 dB |
| Operating temperature | 0ºC to 45ºC |
| Operating humidity | 5% to 95% (non-condensing) |
| Operating altitude | < 5000 m (16404.2 ft.) |
| Storage temperature | –40ºC to +70ºC |
| Storage altitude | < 5000 m (16404.2 ft.) |
| Basic function | DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP |
| WLAN (AC) | AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management) |
| IPv4 unicast routing | Routing policies, static routes, RIP, OSPF, IS-IS, BGP |
| IPv6 unicast routing | Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+ |
| Basic IPv6 function | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6 |
| IPv6 tunneling | Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP |
| Multicast | IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD |
| MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
| VPN | IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, Smart Application Control (SAC) |
| Security | ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering |
| Management and maintenance | Upgrade management, device management, web-based network management, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment, NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA |
| EMC standards compliance | CISPR32 Class A; EN 55032 Class A; CISPR24; EN 55024; ETSI EN 300 386; AS/NZS CISPR32 Class A; FCC Part 15 Subpart B Class A; ICES 003 Class A; IEC 61000-3-2; EN 61000-3-2; IEC 61000-3-3; EN 61000-3-3; GB 9254; VCCI-CISPR32 Class A |
| Environmental standards compliance | RoHS; REACH; WEEE |
| Safety standards compliance | IEC 60950-1; EN 60950-1; UL 60950-1; CSA C22.2 No 60950-1; GB 4943.1 |

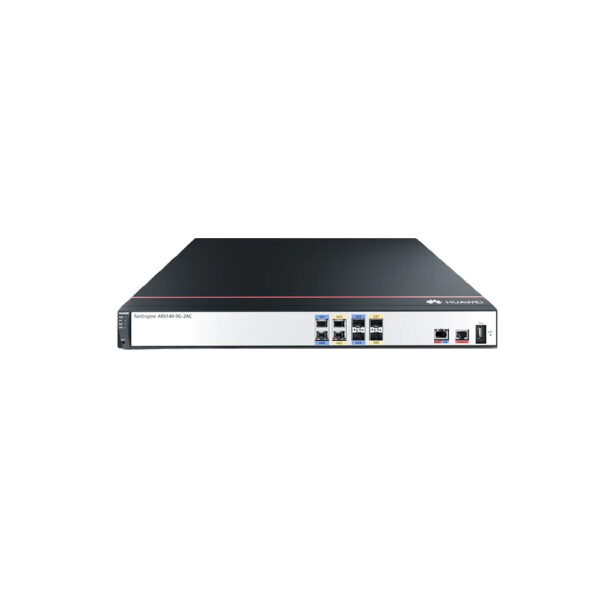

Huawei AR6140-9G-2AC 5xGE RJ45 4xGE SFP Router B2B Wholesale
The Huawei AR6140-9G-2AC is a NetEngine AR6000 enterprise router for branch networks. It delivers 2Gbps forwarding and IPsec performance with 5xGE RJ45, 4xGE SFP, USB 3.0, 4 SIC slots and dual AC power. It integrates routing, switching, VPN, security, MPLS and SD-WAN services for B2B cloud branches.
