| Attribute | Specification |
|---|---|
| Networking – Type | Switch |
| Networking – Subcategory | Network hubs and switches |
| Networking – Subtype | Gigabit Ethernet |
| Networking – Form Factor | Rack-mountable |
| Networking – Stackable | Stackable |
| Networking – Ports Qty | 24 |
| Networking – Advanced Switching | Layer 3 |
| Networking – Routing Protocol | CIDR, ECMP, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing |
| Networking – MAC Address Table Size | 32768 entries |
| Networking – Jumbo Frame Support | 9220 bytes |
| Networking – Manageable | Yes |
| Networking – Remote Management Protocol | CLI, HTTP, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON |
| Networking – Power Over Ethernet (PoE) | PoE+ |
| Networking – PoE Budget | 720 watt |
| Networking – Features | Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP BPDU Guard, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support |
| Networking – Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x |
| Ports – Qty | 20 |
| Ports – Type | 10/100/1000 (PoE+) |
| Ports (2nd) – Qty | 4 |
| Ports (2nd) – Type | Combo Gigabit SFP |
| Expansion Slots – Expansion Slots | 1 (total) / 1 (free) x expansion slot, 1 (total) / 1 (free) x Stacking Module slot |
| Interface Provided – Interfaces | 1 x 1000Base-T management, 1 x serial (console), 1 x USB Type B, 20 x 1000Base-T RJ-45 PoE+, 4 x 1000Base-T |
| Power Device – Type | Internal power supply, Internal power supply (not installed) |
| Power Device – Installed Qty | 0 |
| Power Device – Max Supported Qty | 2 |
| Power Device – Nominal Voltage | AC 120/230 V |
| Power Device – Frequency Required | 50/60 hertz |
| Power Device – 80 PLUS Certification | 80 PLUS Silver |
| Dimensions – Width | 17.4 inch |
| Dimensions – Depth | 12.8 inch |
| Dimensions – He |

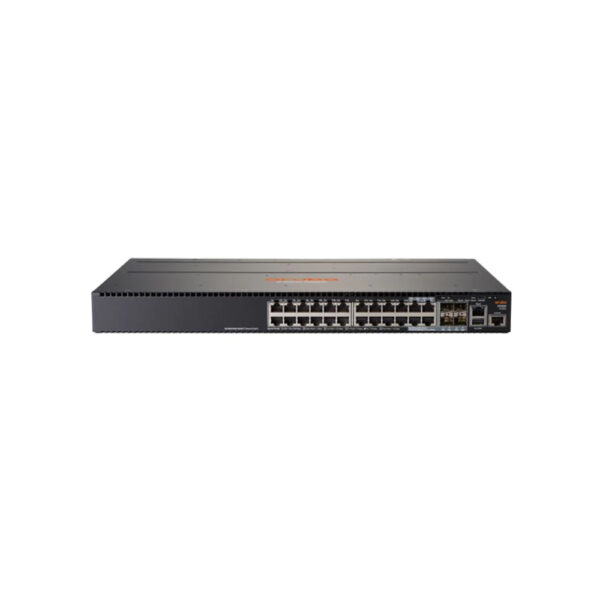

HPE Aruba JL320A 2930M 24G PoE+ 1-Slot Enterprise Switch
The HPE Aruba JL320A 2930M 24G PoE+ 1-Slot Switch delivers secure Gigabit access for enterprise networks. It offers 24 ports, including 20 RJ-45 PoE+ and 4 Gigabit ports, Layer 3 routing, stacking, modular uplinks and Zero Touch Provisioning for scalable campus, branch and SMB deployments. projects.
