| Attribute | Value |
|---|---|
| Product | MX150-R Specification |
| Description | Juniper MX150 with 10 10/100/1000BASE-T ports, two 100/1000BASE-X SFP ports, and two 10GBASE-X SFP+ ports (optics sold separately), 6-core x86 processor, 400 GB SSD, and 32 GB memory. Supports full L2/L3 feature sets including HQoS. |
| System Capacity | 20 Gbps |
| Switch Fabric Capacity per Slot | N/A |
| DPCs and/or MPCs per Chassis | N/A |
| Default memory | Xeon D processor running Wind River Linux 7; 32 GB DDR4 RAM; 400 GB SSD |
| Number of cores | 6 cores |
| Chassis per Rack | 42 |
| Dimensions (W x H x D) | 17.36 x 1.72 x 12 in (44.09 x 4.37 x 30.48 cm) |
| Mounting | Front or center |
| Power Options | 100-240 VAC |
| Typical power draw (AC) | 140W |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| Humidity | 5 to 90 percent noncondensing |
| Altitude | No performance degradation to 13,000 ft / 4000 m |
| Air flow | Front to back |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Operating humidity | 5% to 90% |

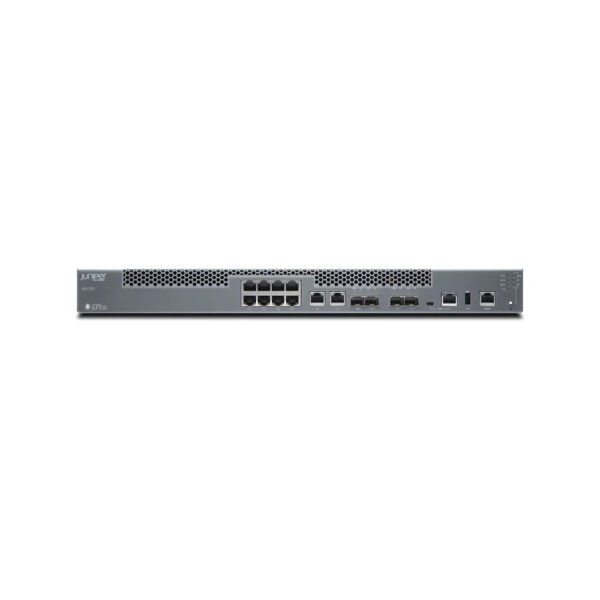

Juniper MX150-R Enterprise Edge Router 10xGE 2xSFP+ 20Gbps
Juniper MX150-R is a compact MX Series edge router for enterprise WAN and service provider edge deployments. It delivers 20Gbps capacity with 10xGE, 2 SFP, 2 SFP+ 10G ports, 6-core CPU, 32GB RAM, 400GB SSD, and full L2/L3 routing features with HQoS for scalable networks and WAN aggregation services.
