| Attribute | Value |
|---|---|
| Product | MX960BASE-AC Specification |
| Description | Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE |
| System capacity | Up to 12 Tbps |
| Switch fabric capacity per slot | Up to 1.5 Tbps |
| DPCs and/or MPCs per chassis | Up to 11 |
| Chassis per rack | 3 |
| Dimensions (W x H x D) | 17.37 x 27.75 x 28 in (total depth includes standard cable manager measurements) (44.11 x 70.49 (16 U) x 71.1 cm) |
| Mounting | Front or center |
| Power options | 200 to 240 V AC |
| Operating temperature | 0–104°F (0–40°C) at 6000 feet |
| Humidity | 5 to 90 percent non-condensing |
| Altitude | No performance degradation to 13,000 ft/4,000 m |
| Default memory | 2×16 MB NOR flash storage; 64 GB of DDR4 RAM; 2×50 GB SSD |
| Number of cores | 6 cores |
| Typical power draw (AC) | 6520 W |

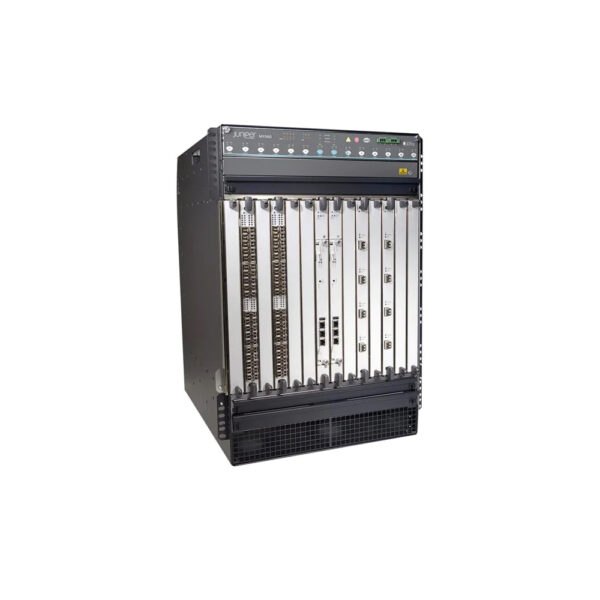

Juniper MX960BASE-AC MX960 2xSCB-E Enterprise AC Chassis
The Juniper MX960BASE-AC is a 14-slot MX960 base chassis for scalable carrier and data center routing. It includes 2 fan trays, 3 AC power supplies, 2 SCBs and 1 RE, delivering up to 12 Tbps system capacity with high-density 10GbE, 40GbE, 100GbE and 400GbE interface support and Junos-ready rollouts.
