| Attribute | Value | Attribute | Value |
|---|---|---|---|
| Model | CR5B00BKPB50 | Brand | Huawei |
| Throughput capability | Non-block switch fabric, support multi Chassis The maximum system capacity: 819Tbps/64 Chassis (400G) | Port capacity | 15Tbps/ single Chassis (480G) |
| Interface Types | GE, 10GE, 155M POS, 622M POS, 2.5G POS, 10G POS, 40G POS, 100GE, 400GE | Routing protocol | IPv4 static route, OSPF, IS-IS, BGP, PIM, MSDP, MBGP |
| IPv6 | IPv4 & IPv6 dual stack; IPv6 line speed forwarding based on hardware IPv6 static route, BGP4+, RIPng, OSPFv3, IS-ISv6 IPv6 peer discovery, PMTU discovery, TCP6, ping IPv6, Tracert IPv6, socket IPv6, TFTP IPv6 client, IPv6 policy route , IPv6 NetStream, etc Manually configured tunnel, automatic tunnel, 6 to 4 tunnel | High Availability | 1:1 standby for MPU, 3+1 backup switching fabric, 8+8 backup for power supply and 2+2 back for fan hot swappable based on state; Non-stop Forwarding (NSF) and Non-stop Routing (NSR) BFD for VRRP/BGP/OSPF/ISIS/TE LSP/LDP/ LSP/TE and PIM IGP/BGP/Multicast Fast Convergence IP/LDP/BGP/TE Fast Re-Route (FRR), BGP/ISIS Auto FRR, ETH Trunk, IP Trunk In-Service Software Upgrade (ISSU), Automatic fault diagnosis function, Hot Patching Configuration Management Bi-Direction Compatible |
| Weight | 380 kg |

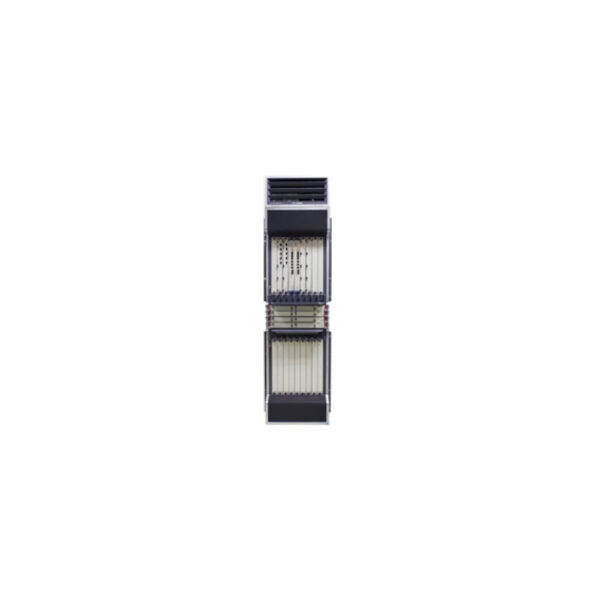

Huawei CR5B00BKPB50 NE5000E Enterprise Core Router Chassis
CR5B00BKPB50 is a Huawei NE5000E cluster router chassis for carrier IP backbone, cloud and data center cores. It supports non-blocking fabric up to 819Tbps multi-chassis capacity, 15Tbps per chassis, GE-100GE interfaces, IPv4/IPv6 routing and high-availability features for resilient growth at scale.
