| Attribute | Specification |
|---|---|
| Aruba JH019A Specification | JH019A Specifications |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX,IEEE 802.3ab type 1000BASE-T)Media type: Auto-MDIXDuplex: 10BASE-T/100BASE-TX: half or full1000BASE-T: full only supports a maximum of 24 autosensing 10/100/1000 ports |
| Memory and processor | 1MB flashPacket buffer size: 512KB |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack (hardware included)Desktop mounting |
| Throughput | up to 35.7 Mp/s (64-byte packets) |
| Switching capacity | 48 Gb/s |
| MAC address table size | 8192 entries |
| Reliability: MTBF (years) | 69.9 |
| Dimensions | 4.4 x 4.4 x 23.8 cm(1.73 x 17.32 x 9.37in)(1U height) |
| Weight | 3.3 kg (7.28 lb) |
| Frequency | 50/60 Hz |
| Maximum heatdissipation | N/A |
| Voltage | 100 – 240 V ac (rated) |
| Current | 0.3/1.8 A |
| Maximum power rating | 160 W |
| PoE power | 124 W PoE+ |
| Operating temperature | 0°C to 40°C(32°F to 104°F) |
| Operating relative humidity | 5% to 95%, non condensing |
| Altitude | Up to 5 km(16,404 ft) |
| Acoustic | Power: 0 dB No fan |

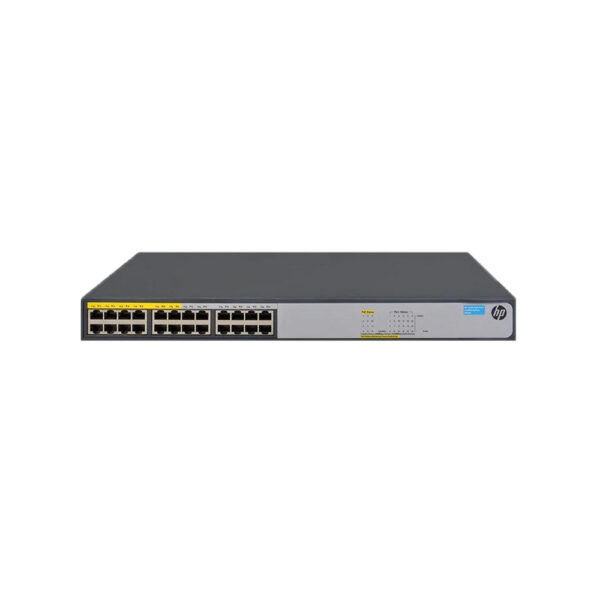

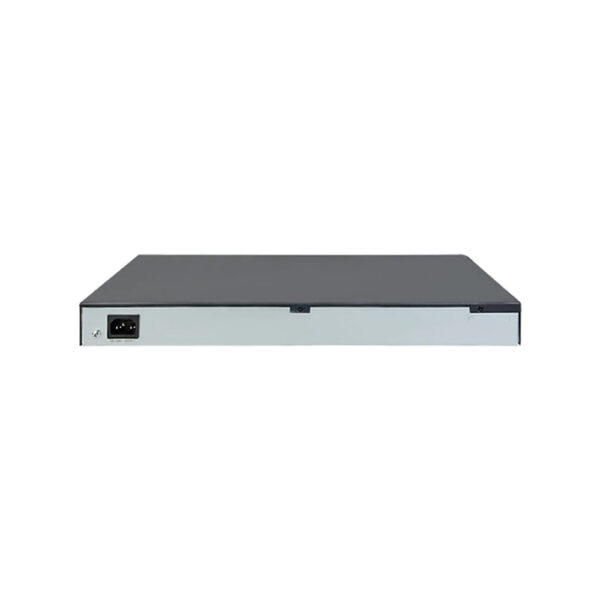

HPE JH019A Aruba 1420 24G PoE+ 124W B2B Switch Wholesale
The HPE JH019A Aruba 1420 24G PoE+ 124W Switch is an unmanaged Layer 2 Gigabit switch for SMBs and office networks. It offers 24 RJ-45 10/100/1000 ports, 12 PoE+ ports with a 124W power budget, fanless 0 dB operation, 48 Gbps switching capacity, and easy plug-and-play deployment for phones, cameras.
